- Platfform bach ar gyfer deunyddiau maint arbennig
- Bodloni norm EN1570 a safon diogelwch ANSI/ASME
- Dyluniad strwythur ergonomig
- Mae un mecanwaith yn gweithredu codi a gogwyddo i ddisodli'r bwrdd codi traddodiadol.

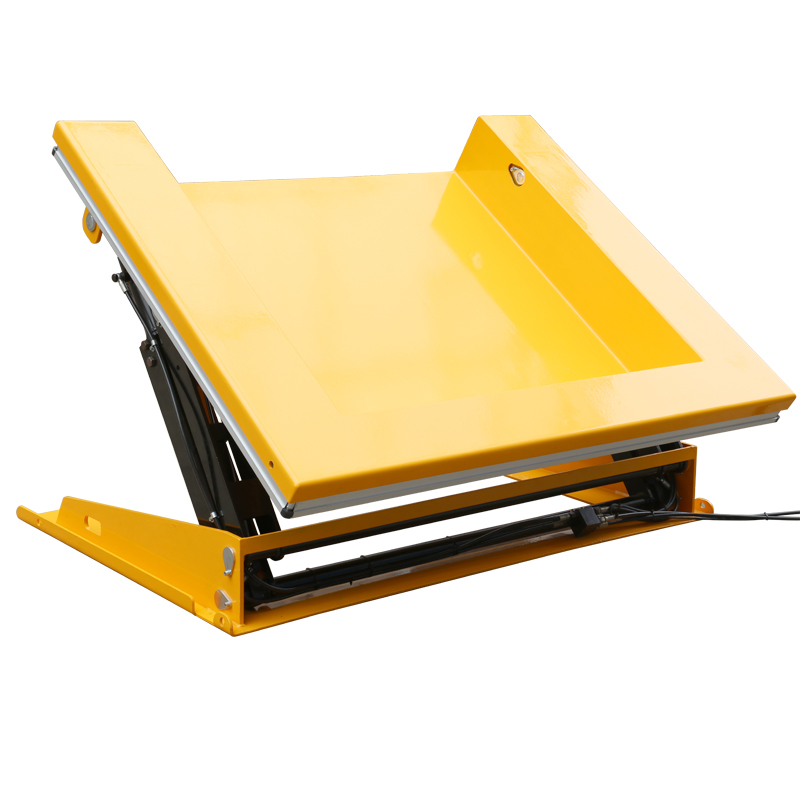

- Gallwch chi ogwyddo ar unrhyw uchder!
| Rhif i-lift | | 1314801 | 1314802 | 1314803 | 1314804 | 1314805 |
| model | | ALT750 | ALT1500 | ALT1500UL | ALT1500UM | ALT1500US |
| Gallu | kg(lbs) | 750 (1650) | 1500 (3300) | 1500 (3300) | 1500 (3300) | 1500 (3300) |
| Uchder Gostwng | mm (modfedd) | 235 (9.3) | 235 (9.3) | 6 (0.2) | 6 (0.2) | 6 (0.2) |
| Uchder wedi'i Godi | mm (modfedd) | 820 （32.3） | 820 （32.3） | 820 （32.3） | 820 （32.3） | 820 （32.3） |
| Maint y Platfform HxW | mm (modfedd) | 1300x800 (51.1x31.5) | 1300x800 (51.1x31.5) | 1380x1730 (54.3x68.1) | 1380x1510 (54.3x59.4) | 1380x1310 (54.3x51.5) |
| Gradd gogwyddo | | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° | 0∽-45° |
| Amser Codi | sec | 18 | 16 | 16 | 16 | 16 |
| Pecyn Power | | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Pwysau net | kg(lbs) | 300 (660) | 355 (781) | 440 (968) | 410 (902) | 390 (858) |
